DIY-APE is pushing the boundaries of PC design with its innovative BTF 3.0 concept, aimed at revolutionizing motherboard cable management. This forward-thinking approach is set to simplify and enhance the DIY PC building experience for enthusiasts around the globe.
Revolutionizing PC Architecture with BTF 3.0
Earlier this year, DIY-APE introduced a groundbreaking 50-Pin connector intended for the latest BTF 3.0 motherboards. This connector is designed to eliminate the need for multiple PSU cables for both motherboard and graphics card power supply. Reports suggest that though the PSU needs to be adjacent to the connector for compatibility, the company clarifies that its utility extends beyond just BTF 3.0-specific cases.
DIY-APE was a trailblazer with its backside connector design, introduced years ago to improve DIY PC builds. Collaborating with major manufacturers like ASUS, MSI, and Gigabyte, among others, the company has set the stage for the BTF era. With products now available at retail, the focus turns to refining the ecosystem for future enthusiasts.
Innovations and Compatibility in Focus
The BTF 3.0 vision includes several key changes:
- Gold Finger Power Supply Graphics Card
- Hidden Power Supply Graphics Card
- Short Tube Water Cooling
- Gold Finger Power Supply
- Side-Insertion Interface Power Supply
- Backside IO Interface Motherboard
- Gold Finger Backside IO Interface Motherboard
- Backside IO Interface Case

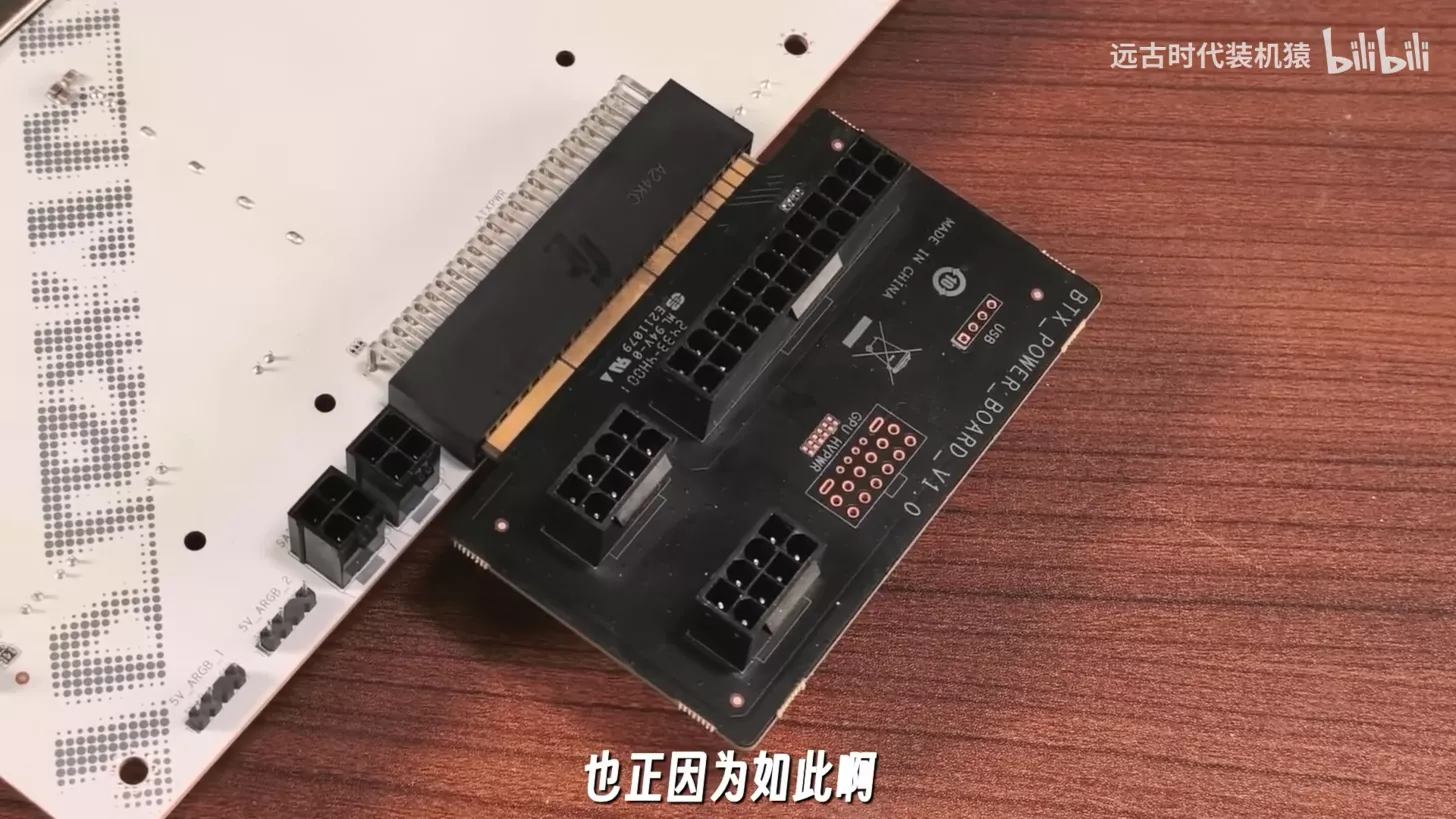

Initially, the goal of BTF 3.0 was to centralize all power and IO interfaces into a single connector. However, DIY-APE decided to maintain compatibility with existing BTF 2.0 and non-BTF standards, creating a seamless integration for various systems. The new 50-pin power connector supports up to 2145W, designed to power modern CPUs and GPUs efficiently, including high-demand components like the RTX 5090. For systems not adopting BTF 3.0, a BTX adapter board supports various connectivity needs, ensuring broader compatibility.
The development of BTF 3.0 aims to unify motherboard IO interfaces into a singular adapter, simplifying connectivity within PC cases. This innovation is anticipated to inspire manufacturers to adopt a universal approach for all IO ports, promoting efficiency and ease of use for builders.
The Future of DIY PC Builds
DIY-APE envisions a future where short-tube AIO cooling solutions complement the aesthetic and functional appeal of BTF 3.0 builds. These solutions promise streamlined installations with pre-routed cables and connectors, enhancing the overall look and efficiency of DIY PCs. The concept is demonstrated with pre-release Colorful hardware, showcasing compatibility with the BTF 3.0 standard across motherboards, PSUs, and graphics cards.
This cutting-edge design not only looks sleek and clutter-free but also represents the future of DIY PC building. Enthusiasts and manufacturers alike eagerly await further developments in the BTF 3.0 ecosystem, which promises to elevate the DIY experience with innovative, user-friendly hardware solutions.
