Cougar CFV235
Type
PC Case
Price
Starts at $139

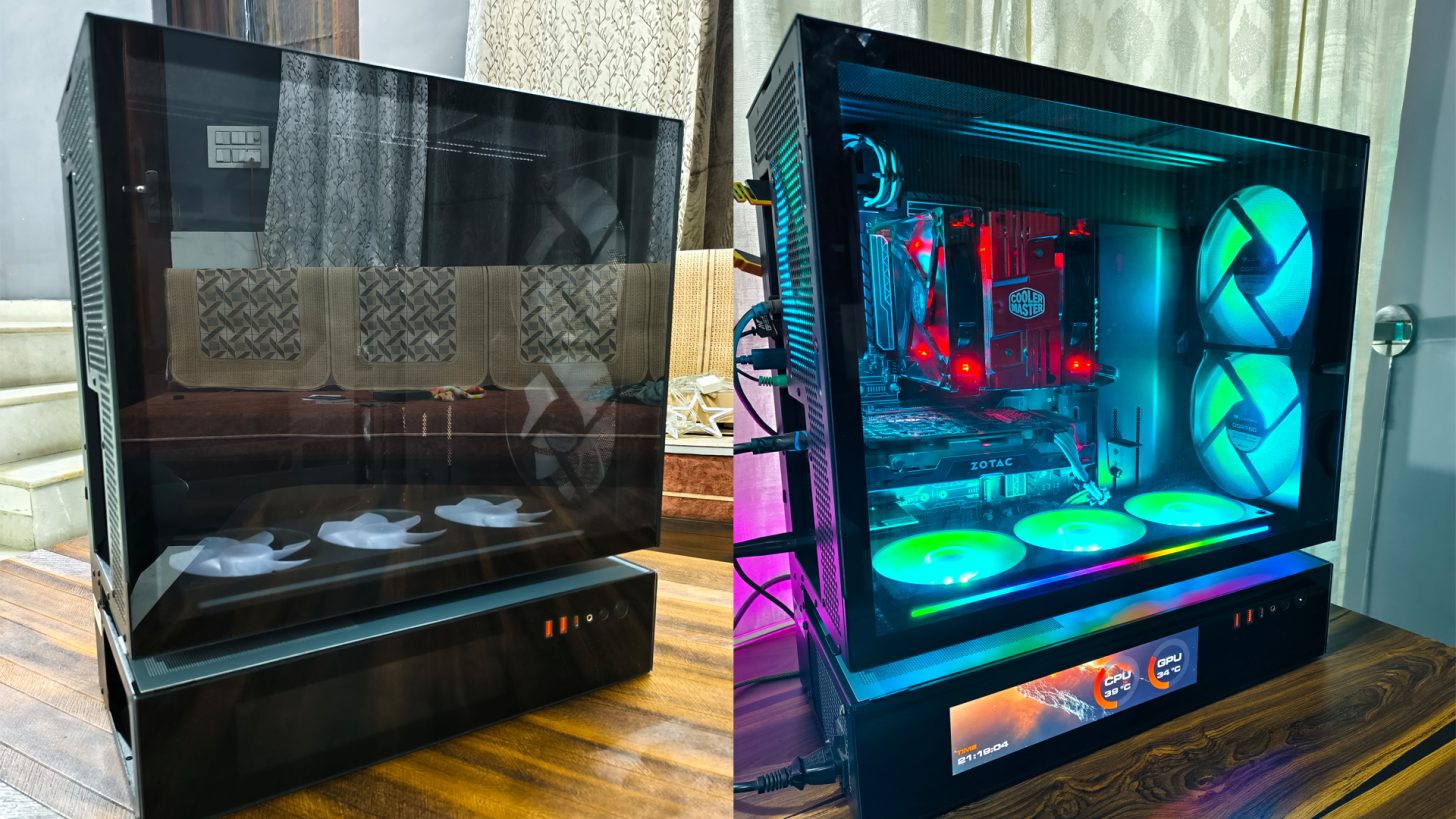

Exciting things are happening in the world of PC cases with Cougar’s latest mid-tower offering, the CFV235. Enthusiasts are eager to explore this new addition, especially after the success of Cougar’s previous models like the Airface ECO RGB. The CFV235 presents itself with a unique structural design that enhances airflow and gives a modern twist to the traditional mid-tower setup. Available in four versions, this case promises to cater to different tastes and preferences, whether you prefer a glass or mesh panel, or even want an integrated LCD monitor at the base. Today, we’re diving into the CFV235 Mesh Vision model, which intriguingly combines a mesh panel with an LCD display at the bottom.
Technical Specifications
| Product Name | CFV235 / CFV235 (White) | ||
|---|---|---|---|
| Case Form Factor | Mid Tower | ||
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB | ||
| Dimensions (WxHxD) | 235 x 493 x 460 (mm) 9.3 x 19.4 x 18.1 (in) |
||
| I/O Panel | USB 3.2 Gen 2×2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button | ||
| 3.5″ Drive Bay | 2 | ||
| 2.5″ Drive Bay | 2+2 (converted from 3.5″ drive bays) | ||
| Expansion Slots | 7 | ||
| Cooling Fan Support | Top | 120mm x 3 / 140mm x 3 | |
| M/B Side | 120mm x 2 | ||
| Bottom | 120mm x 3 | ||
| Rear | 120mm x 1 | ||
| Pre-installed Fans | M/B Side | Unity 240 ARGB PWM Reversed fan x 1 | |
| Rear | 120mm ARGB PWM fan x 1 | ||
| Speed | Unity 240 ARGB PWM Reversed fan: 700-1600 RPM ±10% 120mm ARGB PWM fan: 500-1400 ± 10% RPM |
||
| Connector | 5V 3 Pin (ARGB) / 4 Pin PWM (Fan) | ||
| Maximun Number of Fans | 9 | ||
| Water Cooling Support | Top | 360mm / 280mm / 240mm / 140mm / 120mm | |
| Rear | 120mm | ||
| Aurora LED Strip | Yes | ||
| PWM and RGB hub Sync with M/B | Yes | ||
| Max. Graphics Card Length | 430 (mm) / 16.9 (in) | ||
| Max. CPU Cooler Height | 175 (mm) / 6.9 (in) | ||
| Max. PSU Length | 200 (mm) / 7.9 (in) | ||
A Close Look at the Design

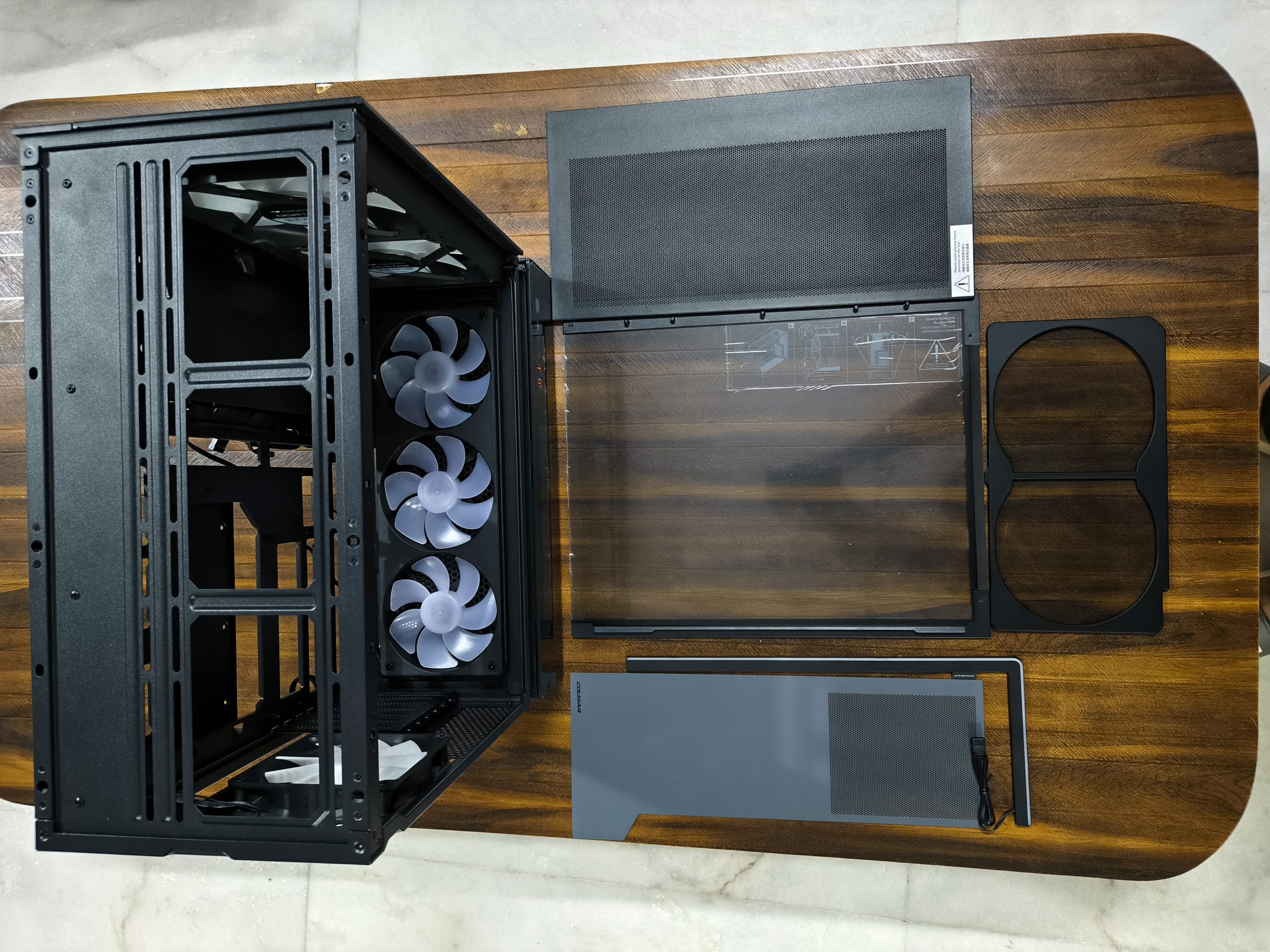

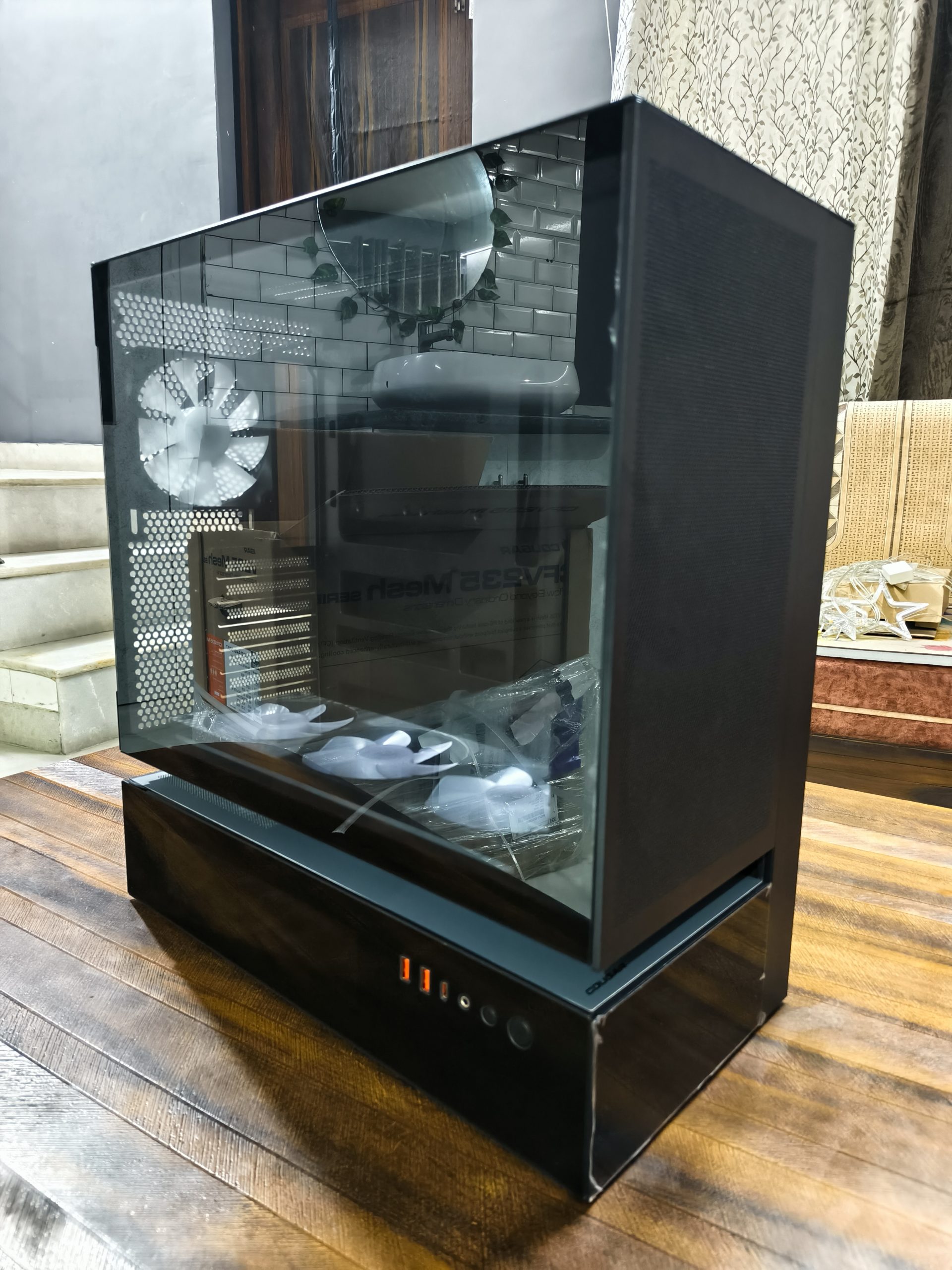

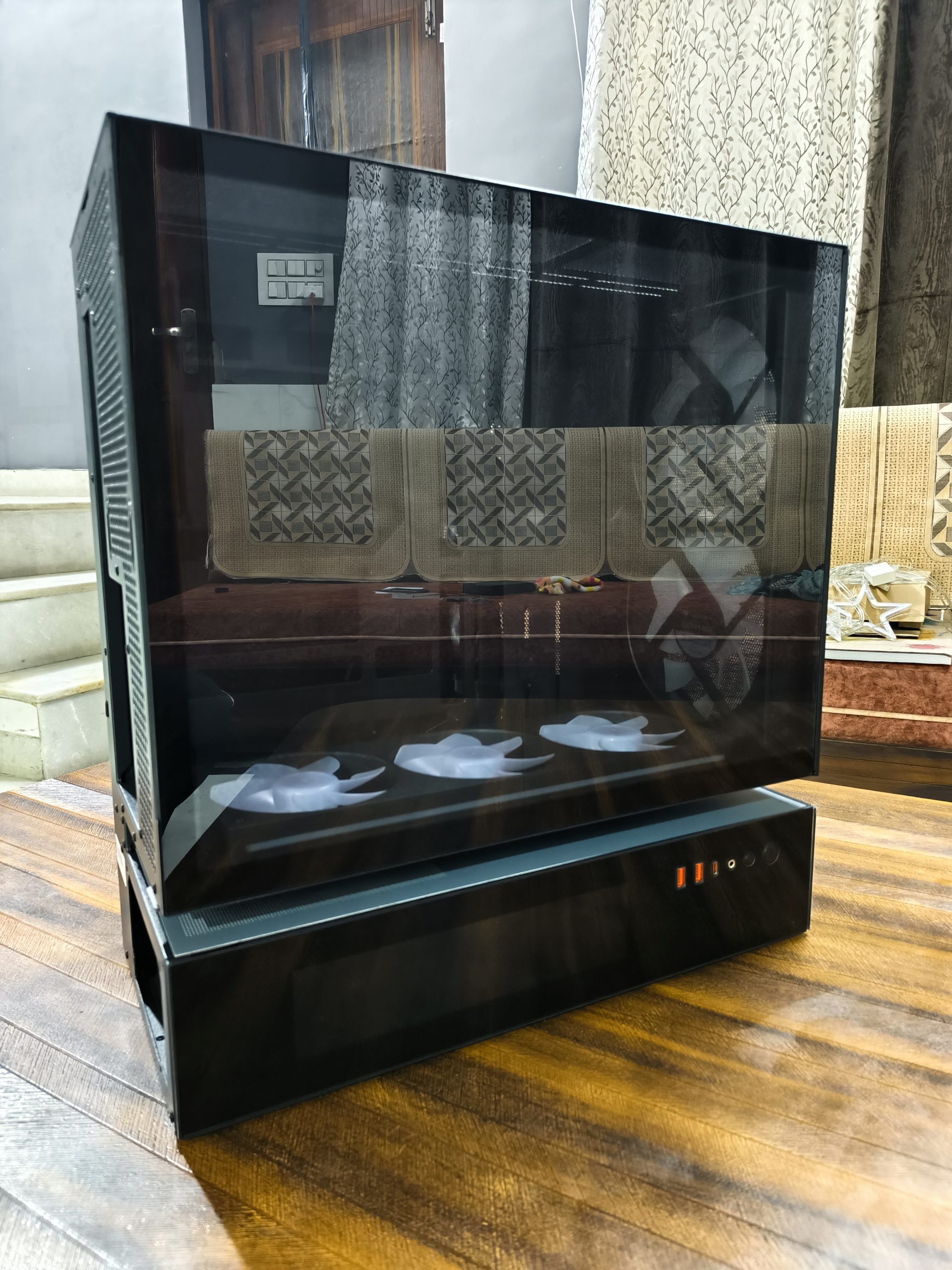

The CFV235 is crafted with a dual-chamber setup, where the PSU chamber elegantly floats below the primary component area. This design offers a spacious interior, perfect for accommodating large graphics cards and tall CPU coolers. The case features a tempered glass side panel that opens effortlessly, providing easy access to your components, and a robust metal panel on the opposite side ensures durability. The interior is cleverly designed with multiple cut-outs for cabling, supporting both traditional and reverse connector motherboards, and keeping your build neat and tidy.

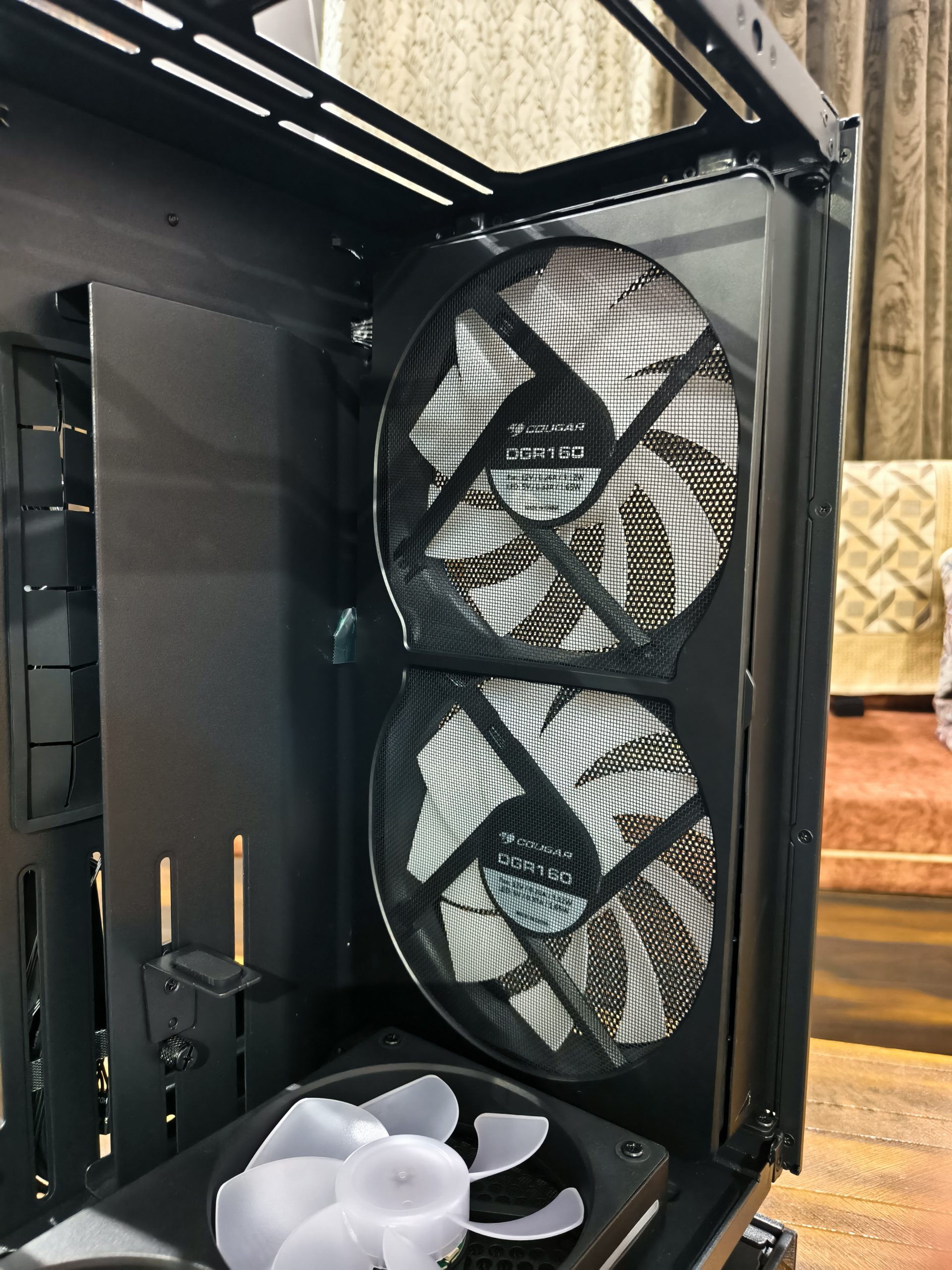

Pre-installed are six fans, more than enough to keep your system cool without needing additional purchases. Dust filters are strategically placed around the case, though accessing them requires removing side panels, a minor inconvenience compared to the hassle-free setup of other models.

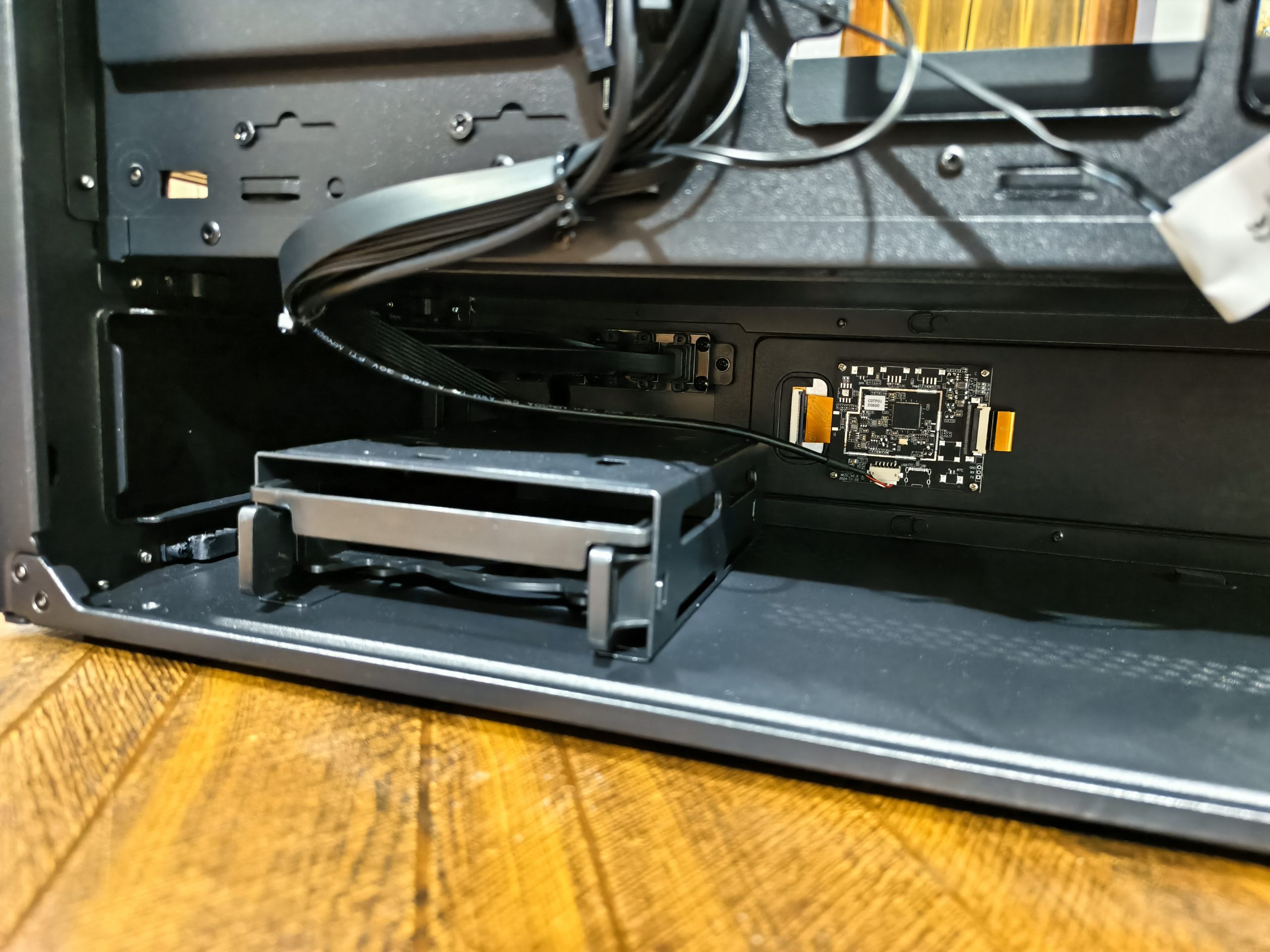

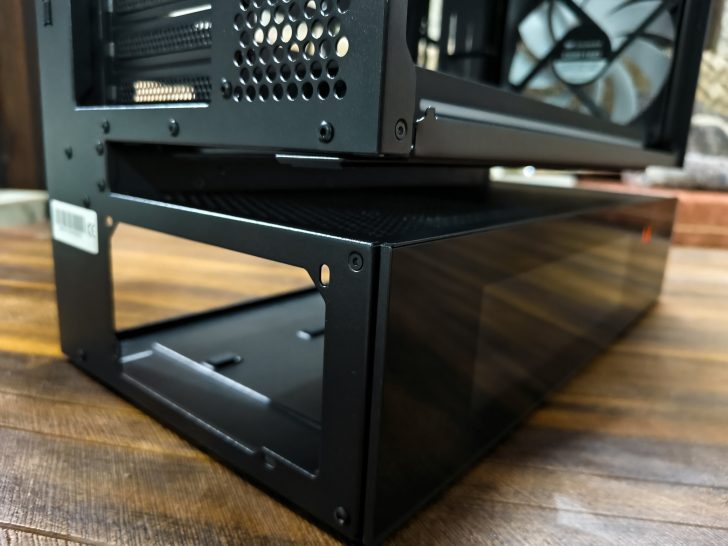

The lower chamber offers ample space for your PSU and HDD, optimizing airflow and making it an ideal choice for gamers and PC builders. The fan setup ensures effective ventilation, and a hub at the back organizes the ARGB devices and fans efficiently.
With an emphasis on cable management, the case provides velcro straps and a cover plate to hide cables, ensuring a clean setup. The inclusion of an L-shaped ARGB light strip adds a touch of personality to your build, customizable through a versatile software suite, although it may occasionally lag.
The Building Process
Building a PC with the Cougar CFV235 is a smooth experience. Starting with the power supply installation, the process is straightforward. The motherboard requires the temporary removal of bottom fans, secured with minimal screws for easy handling. Wiring is a
