GMKtec, a seasoned player in the Mini PC space, is headquartered in Shenzhen, China, and collaborates with tech giants like AMD, Intel, and Microsoft. Their product lineup ranges from entry-level to high-end enthusiast systems, leveraging the latest mobile processors from AMD and Intel.
The latest addition to GMKtec’s lineup is the NuxBox M3 Ultra, an Intel-powered Mini PC that showcases the powerful Intel i7-12700H processor and is available at a price range of $300-$450 US.
GMKtec M3 Ultra Mini PC – Specifications At A Glance
The GMKtec M3 Ultra Mini PC boasts an Intel Core i7-12700H CPU. Our test unit included DDR4-3200 32 GB (16 GB x2) SO-DIMM memory and a 1 TB PCIe Gen 3.0 x4 M.2 drive. For storage expansions, two M.2 slots are available, supporting up to 16 TB total capacity.
This Mini PC integrates the Intel Core i7-12700H CPU, featuring a blend of 14 cores divided into 6 Performance Cores and 8 Efficient Cores, 24 MB of L3 cache, and a turbo speed reaching 4.70 GHz. It operates at a base TDP of 45W, with turbo power peaking at 115W, making it optimal for demanding tasks and multi-threading applications.
The integrated Iris Xe graphics, with 96 EUs and speeds up to 1.4 GHz, handles visuals. Although it’s an older model, it does support modern APIs like DX12.1, OpenGL 4.6, and OpenCL 3.0. However, newer Intel Core Ultra series with Arc iGPUs offer more advanced capabilities.
Memory options include 32 GB DDR4-3200 in dual-channel mode. The Mini PC also offers a 16 GB memory variant and can be expanded to 64 GB. Storage is facilitated through two M.2 2280 slots (2 x Gen3 x4), each supporting up to 8 TB, with one slot already fitted with a 1 TB SSD.
The GMKtec M3 Ultra Mini PC’s I/O includes a 3.5mm audio jack, two USB 10 Gbps ports at the front, one USB 10 Gbps port at the back, a USB 2.0 port, a USB Type-C port, dual HDMI outputs, and a 2.5GbE LAN port.
GMKtec M3 Ultra Mini PC – Unboxing & A Closer Look
The GMKtec M3 Ultra Mini PC arrives in a sleek silver box with the “GMKtec” logo displayed prominently.
The package’s rear details the model’s specifications, featuring the Intel Core i7-12700H, 32 GB of memory, and 1 TB storage.

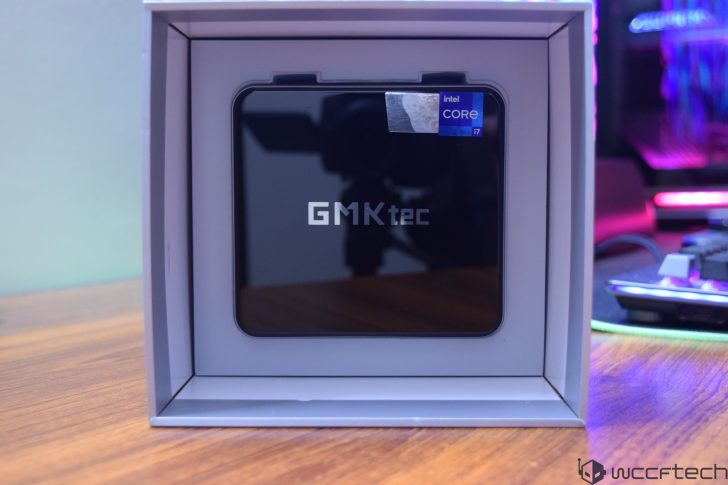

Inside, a guide and warranty holder accompany the power cord, HDMI cable, and adapter.

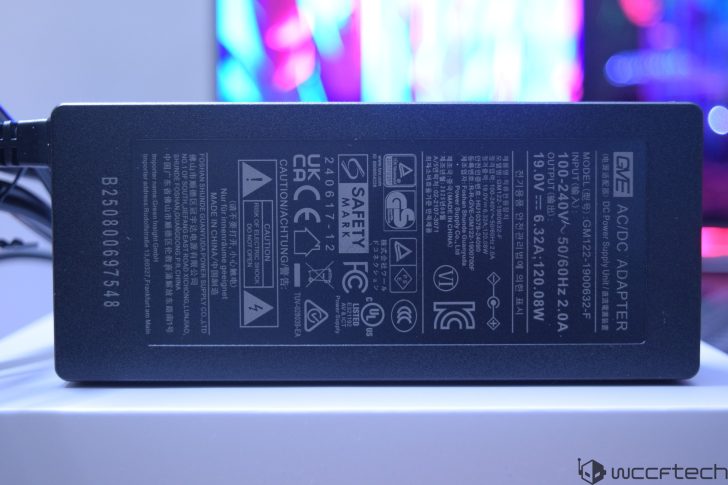

Its 120W adapter easily supports the M3 Ultra’s needs.

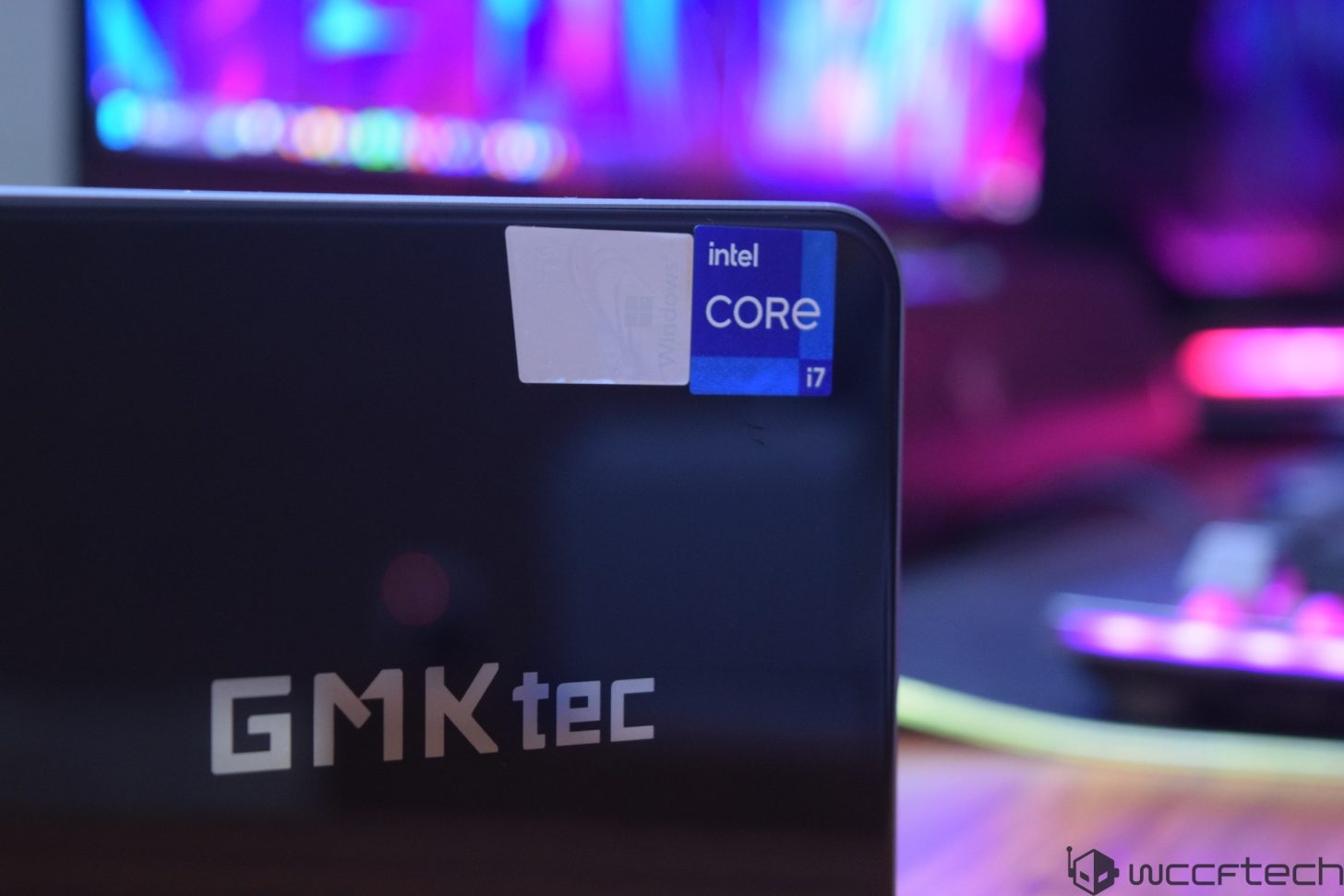

GMKtec’s Mini PCs are distinguished by their stylish dual-tone design, combining a glossy black front with a silver exterior. Exhaust vents on the sides help maintain cool temperatures during intensive use.

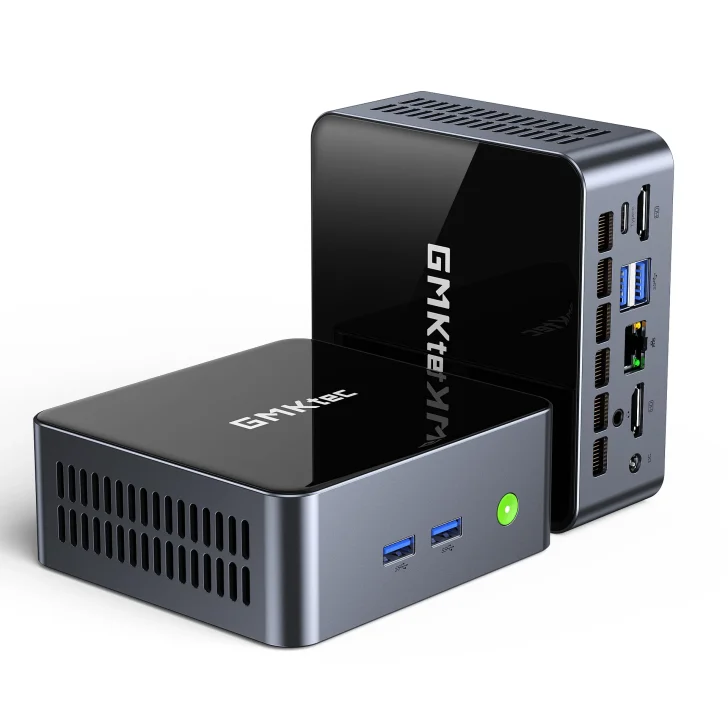

The front I/O includes 2 x USB 3.2 Gen2 Type-A ports and a power button with an LED indicator.
The back I/O of the GMKtec M3 Ultra offers versatile connectivity with dual HDMI outputs, a power “DC” port, one USB2 port, one USB 3.2 Gen2 port, and a 2.5GbE LAN port.
The sides are designed with large vents for efficient airflow.
Accessing the interior is straightforward by removing four screws at the bottom.
The M3 Ultra’s components are upgradable, with memory expansion up to 64 GB
